FJD Trion EC100 EXCAVATOR GUIDANCE SYSTEM
3D Visual Guidance
±3cm Accuracy
Tilt Bucket Support
Elevation Offset
Network Transmission
Online Support OTA
Precision for Every Dig
The EC100 is a wired excavator guidance system delivering accuracy up to ±3 cm. It tracks machine posture in real time and gives clear on screen digging guidance so operators stay confident with every move. Import CAD design files directly to support accurate, efficient excavation from start to finish.
FJD Trion EC100 Excavator Guidance System
Stand Out in Performance
RTK Calibration
Supports RTK calibration using the V10a Rover , without relying on professional equipment like a total station. Completes calibration in just 30 minutes.

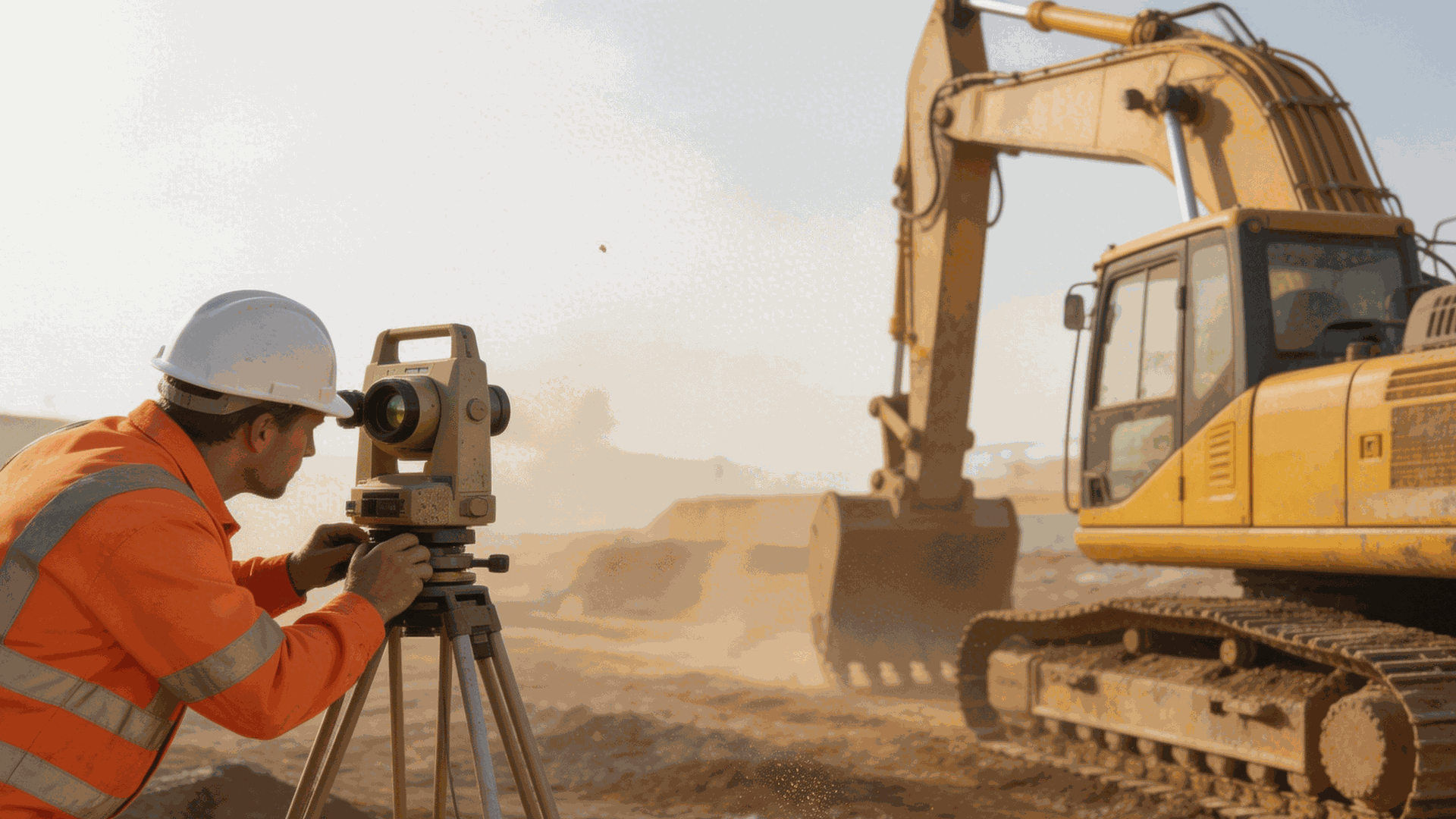

Total Station Calibration
Supports total station calibration using a total station, the guided calibration process completes setup in just 5 steps, designed for professional users.
Full-Machine Posture Guidance & Electronic Fence
IMUs on body, boom, arm, and bucket deliver 100Hz real-time 3D posture & joint angles. Custom e-fences trigger voice alerts to prevent collisions & over-excavation.

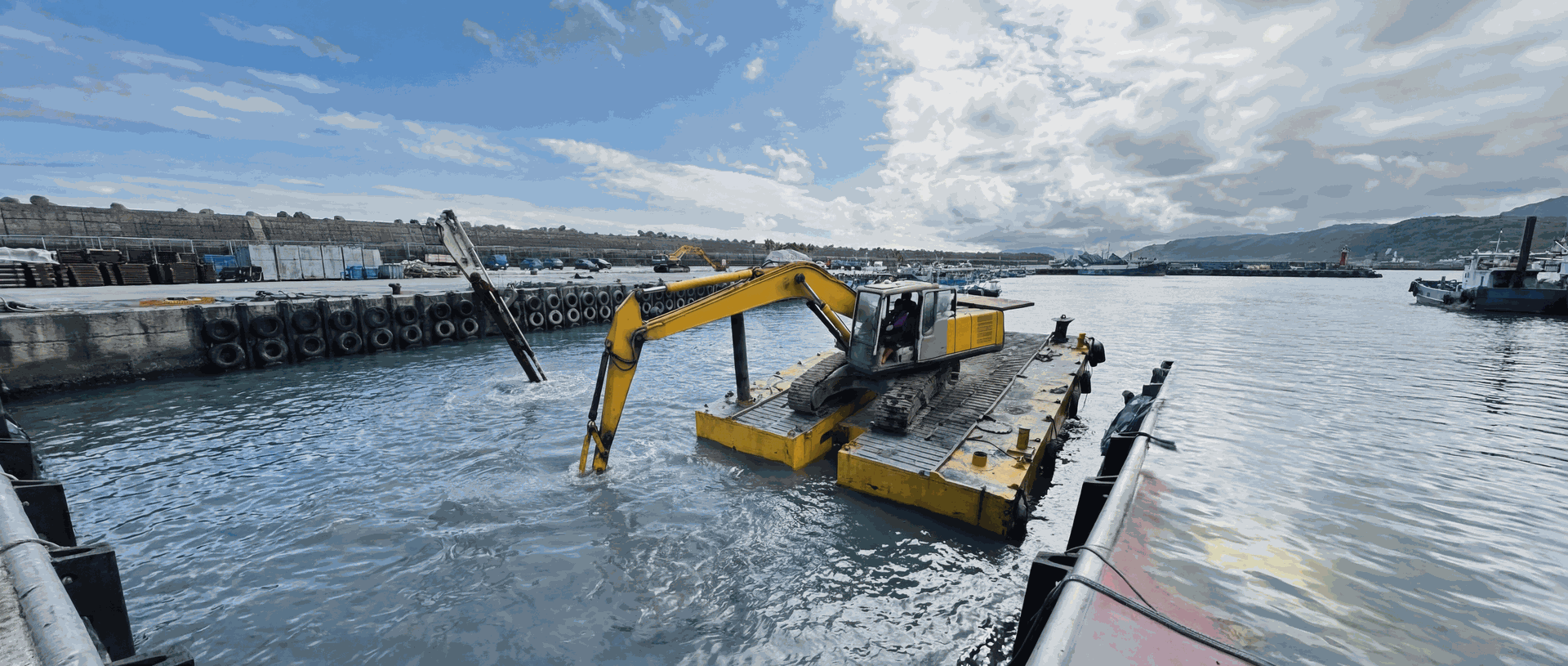

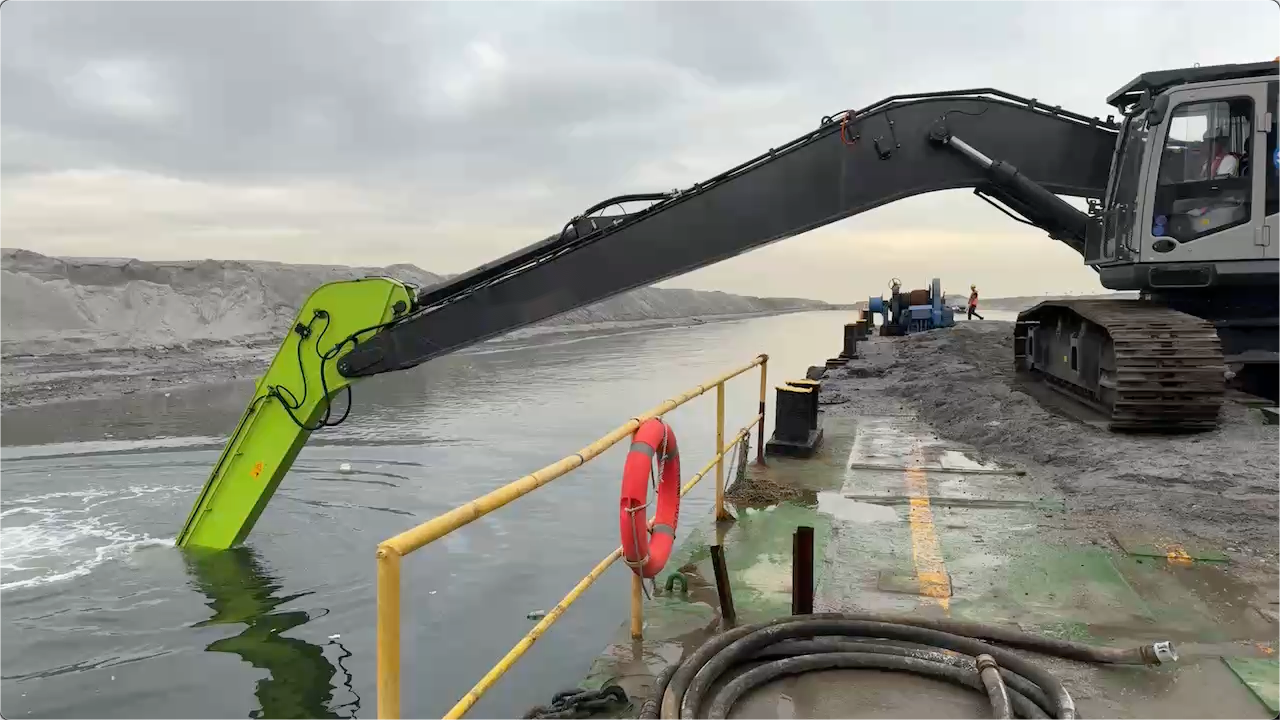

Adapted for Dredging Operations
Built for water construction: Roof-mounted GNSS antennas, IP67-rated sensors, and a professional waterproof kit ensure reliable and stable operation of the equipment in harsh dredging environments.
Shape the ground with certainty, Stay in control

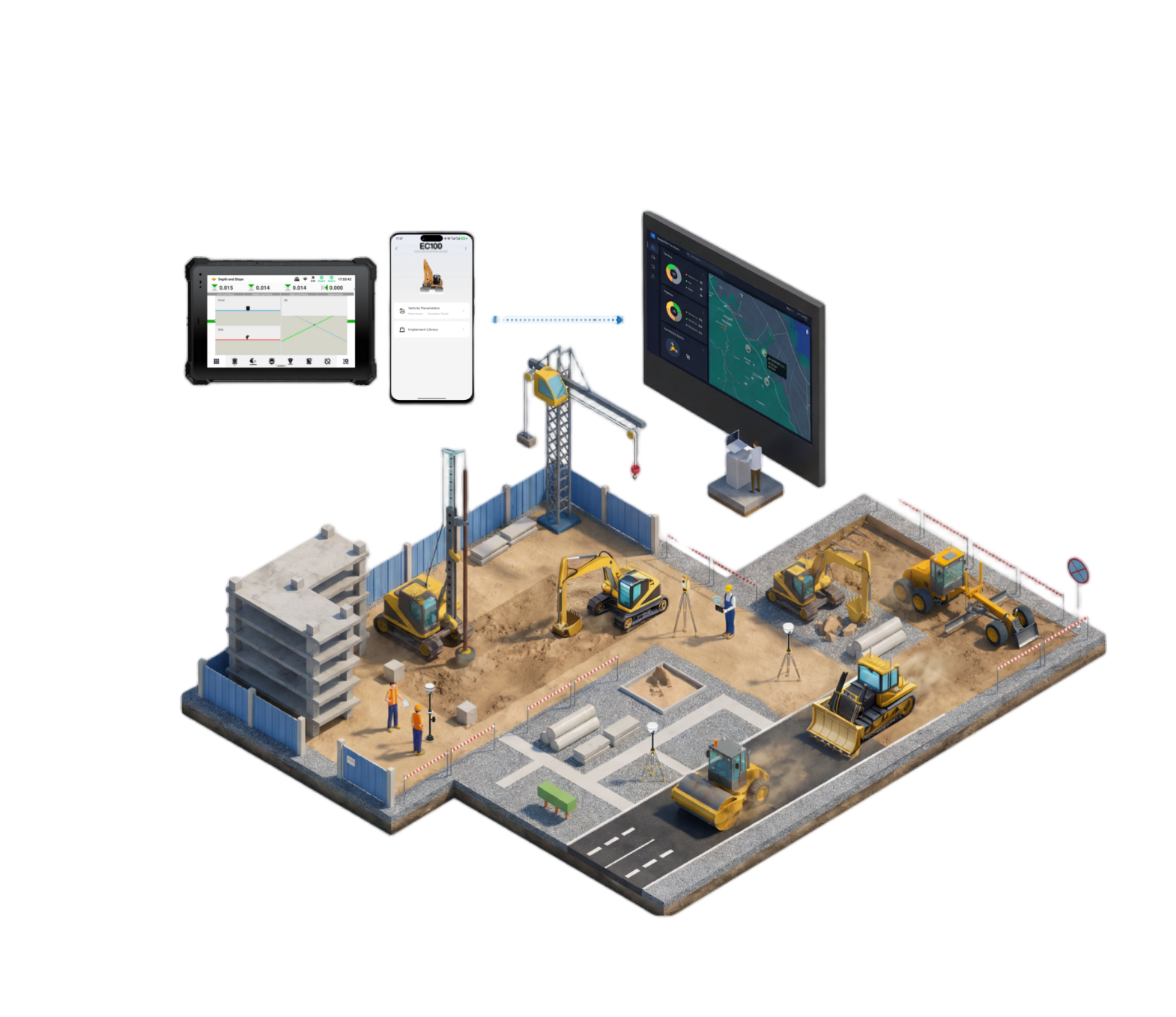

You can view machine location and status in real time.
View project progress and resource data in one place. Support schedule tracking and risk monitoring.

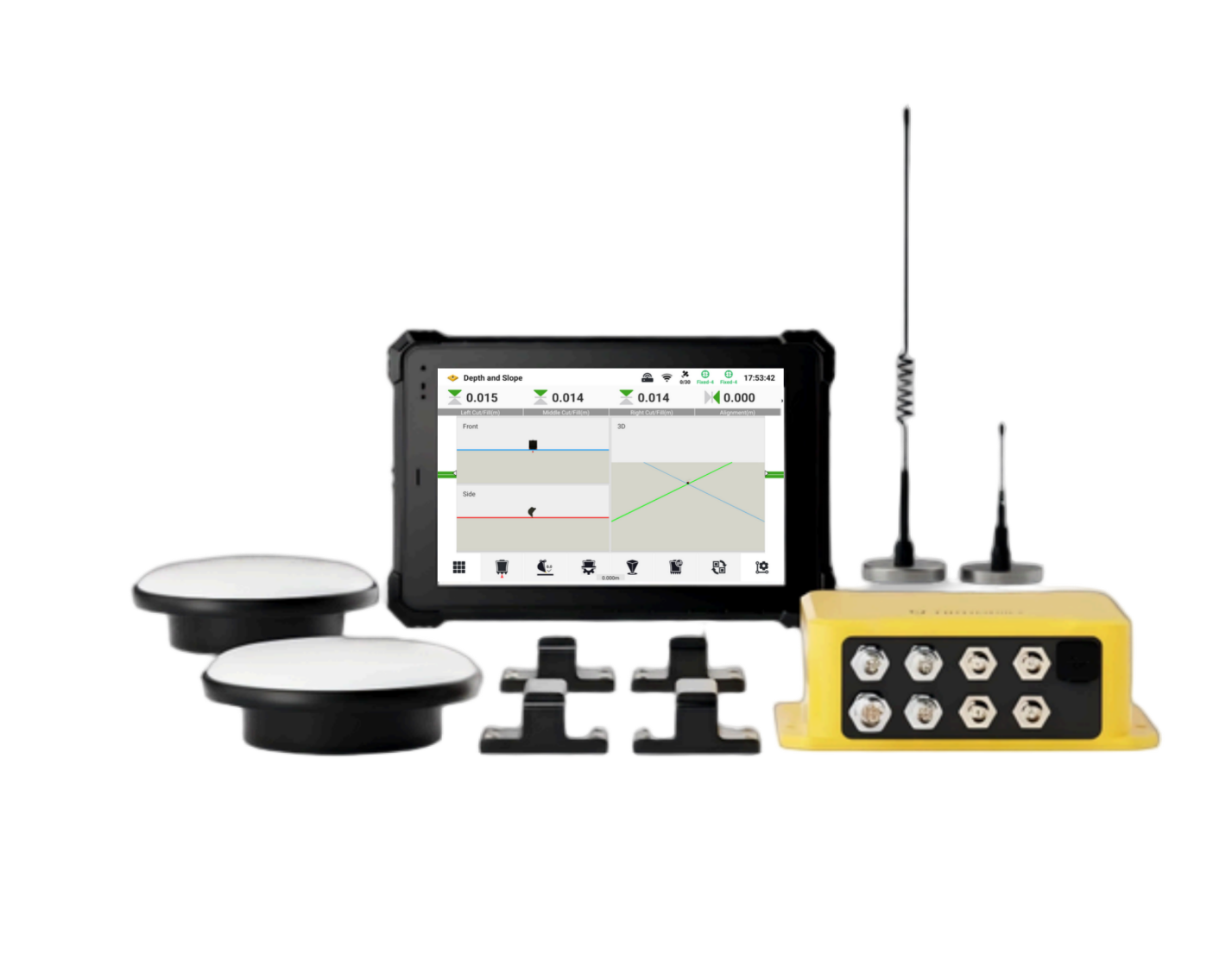

Standard Kit for FJD Trion EC100

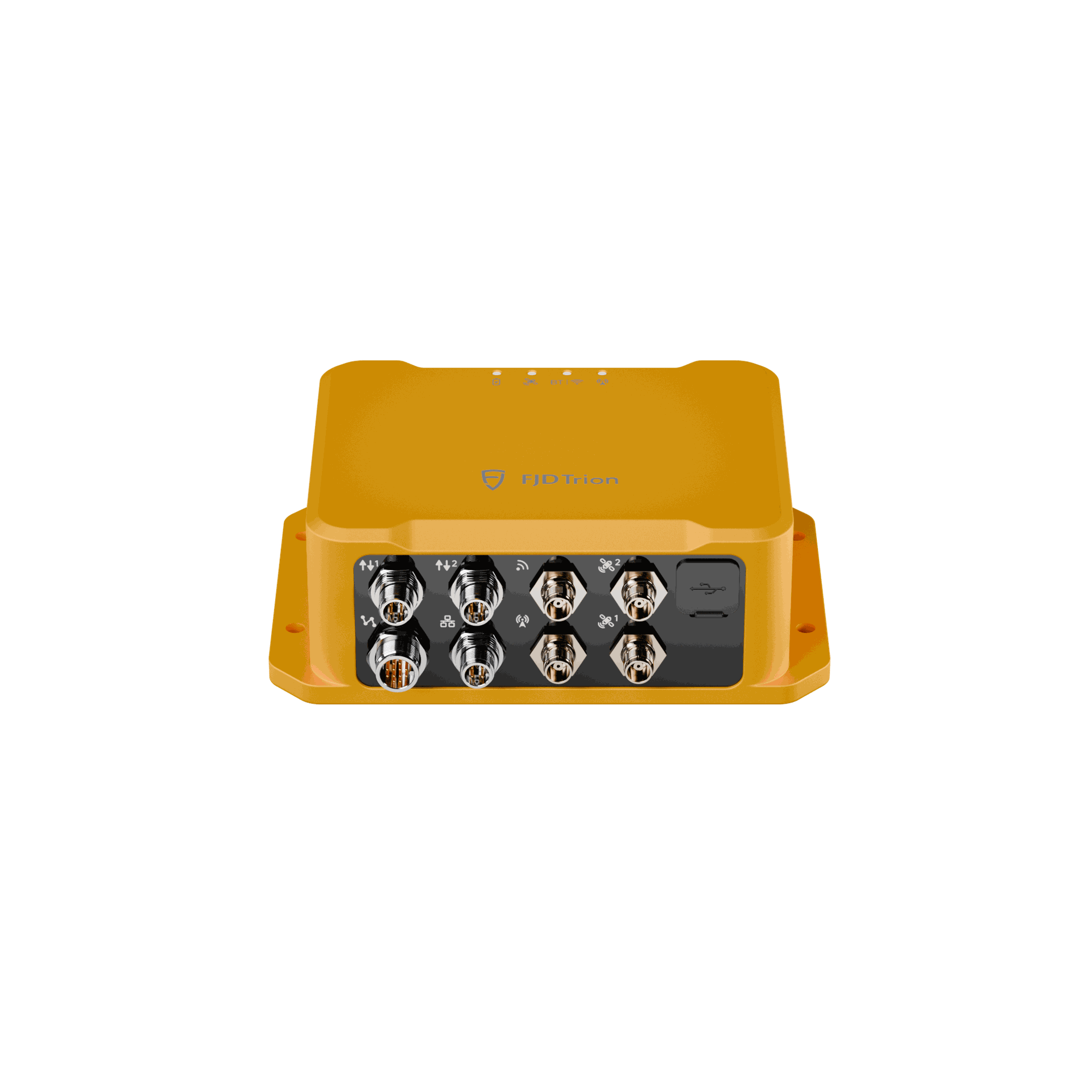

Control Module
Support wired and wireless connections with versatile interfaces, and meet IP67 standards for dust and water protection.

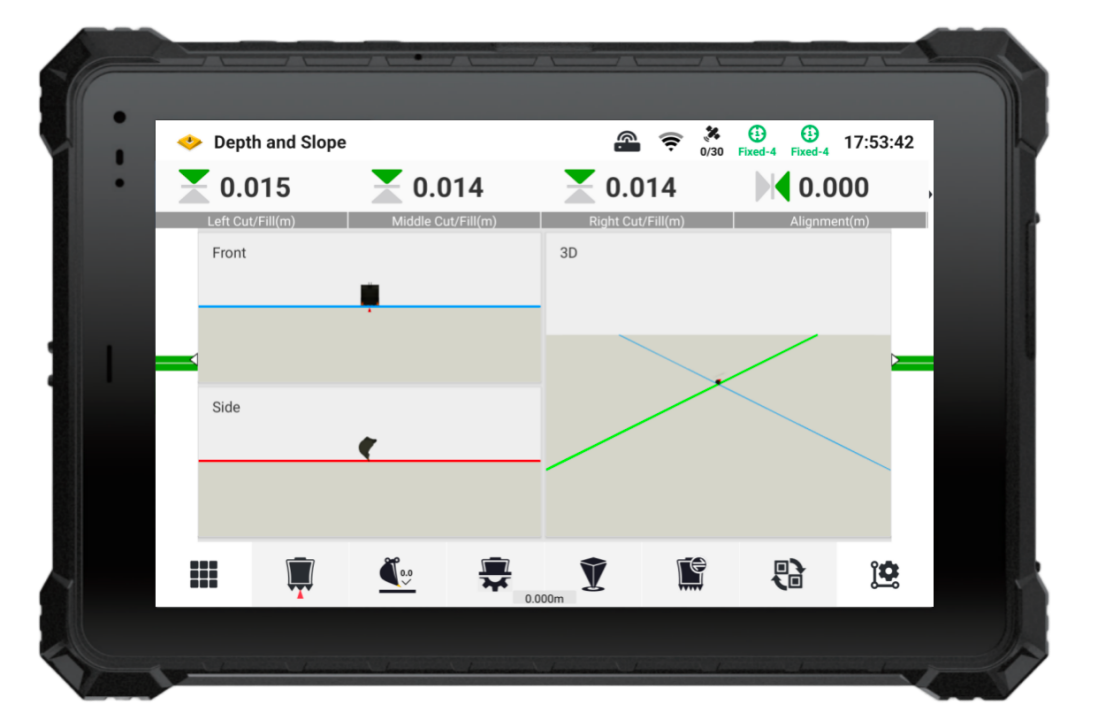

Central Display
Deliver super high performance with the powerful 8-core tablet, standing as the first of its kind in the industry.

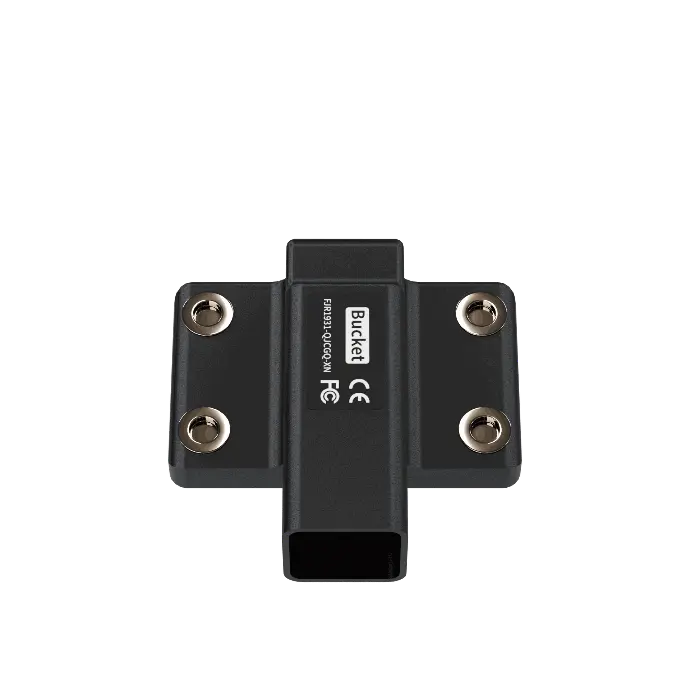

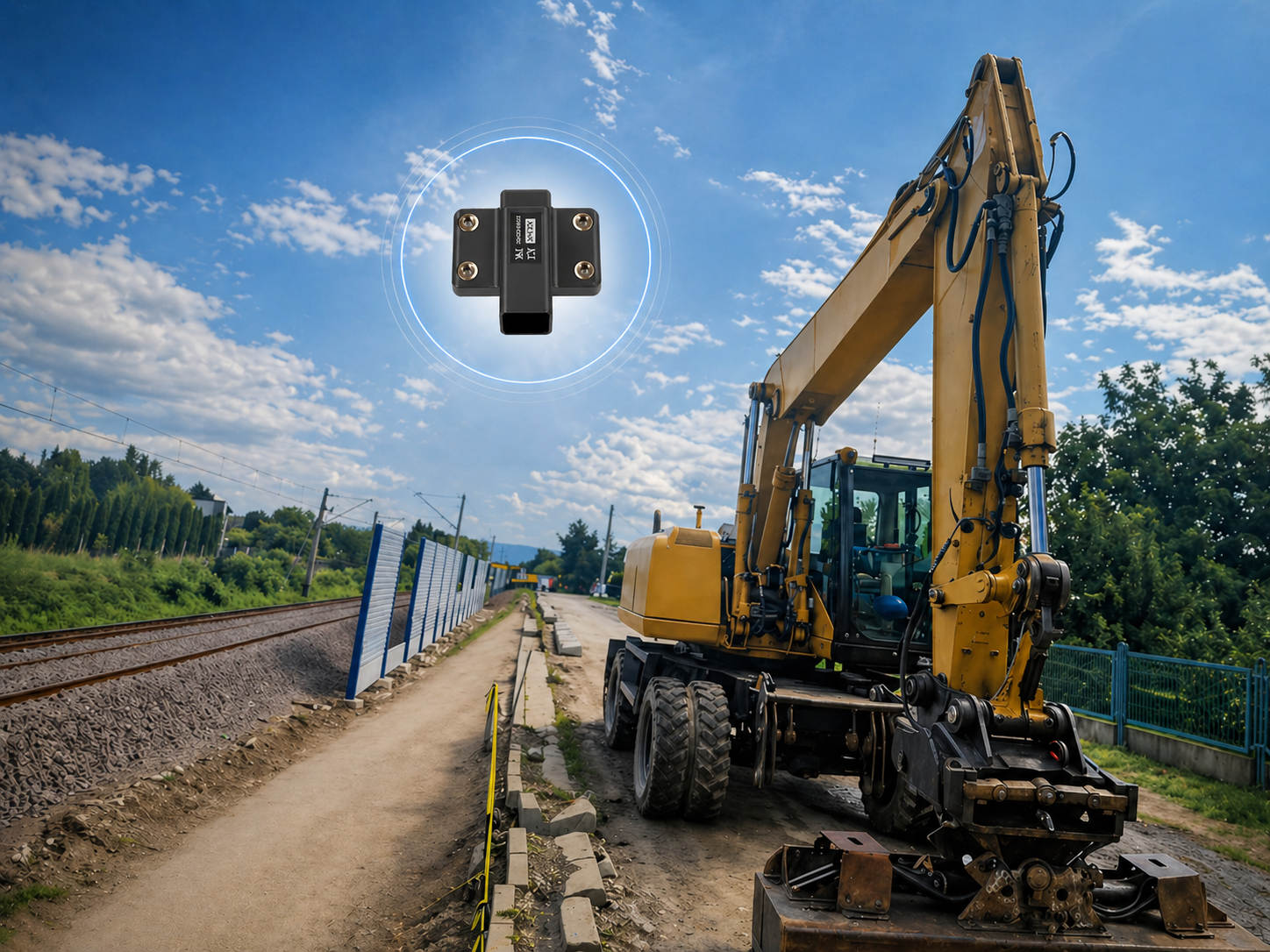

IMU
With 0.05° resolution and up to 100 Hz output, it enables real-time and precise monitoring of excavator arm movement.

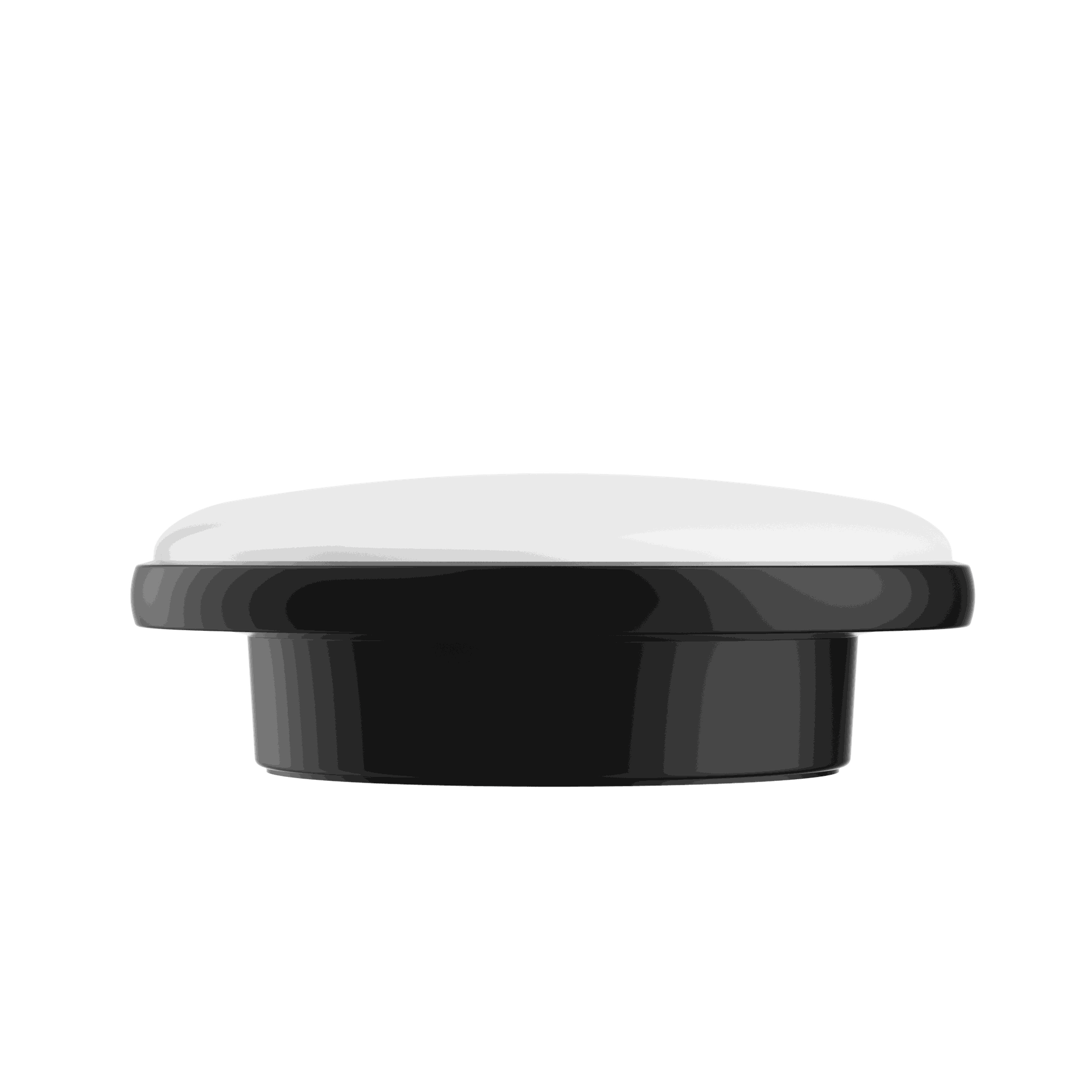

GNSS Antenna
Equipped with a vehicle-grade anti-vibration antenna, it offers stable and reliable connectivity with strong anti-interference capability.
Special Bucket Kits for FJD Trion EC100

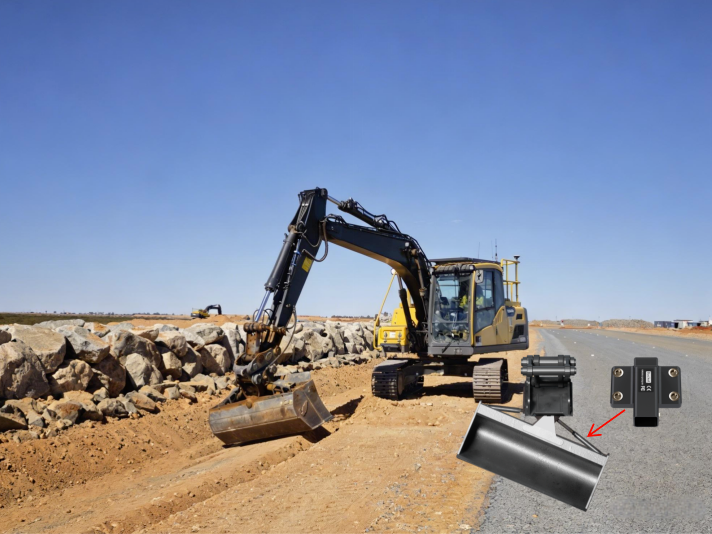

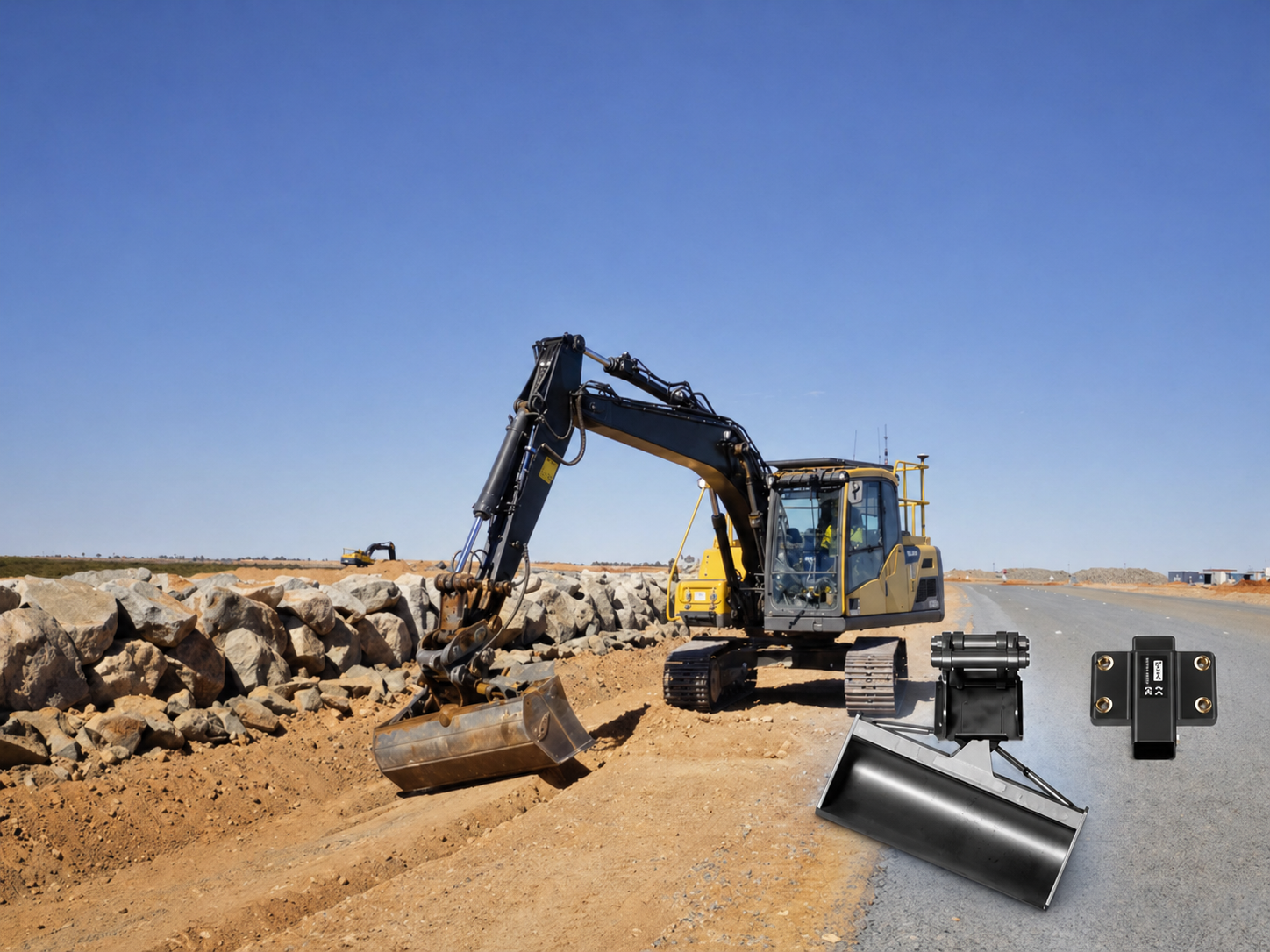

Tilt Bucket Accessory Kit
Ideal for slope finishing and ditch excavation, the Tilt Bucket Kit allows the FJD Trion EC100 to perform precise slope shaping and ditch cleaning without frequent machine repositioning.
Two-piece Boom Accessory Kit
Designed for deep excavation and river dredging, two-piece Boom Kit helps the FJD Trion EC100 maintain accurate bucket control at depth and reach, reducing machine moves.
Swing boom / Offset boom Accessory Kit

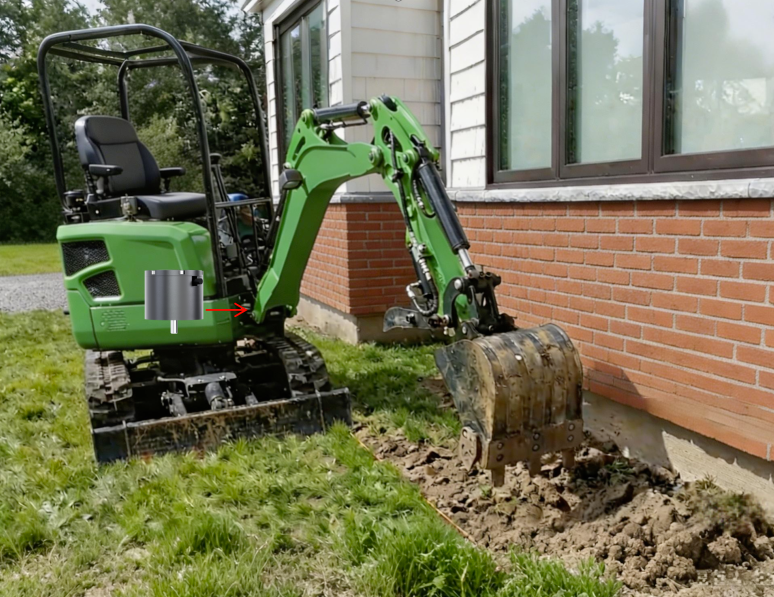

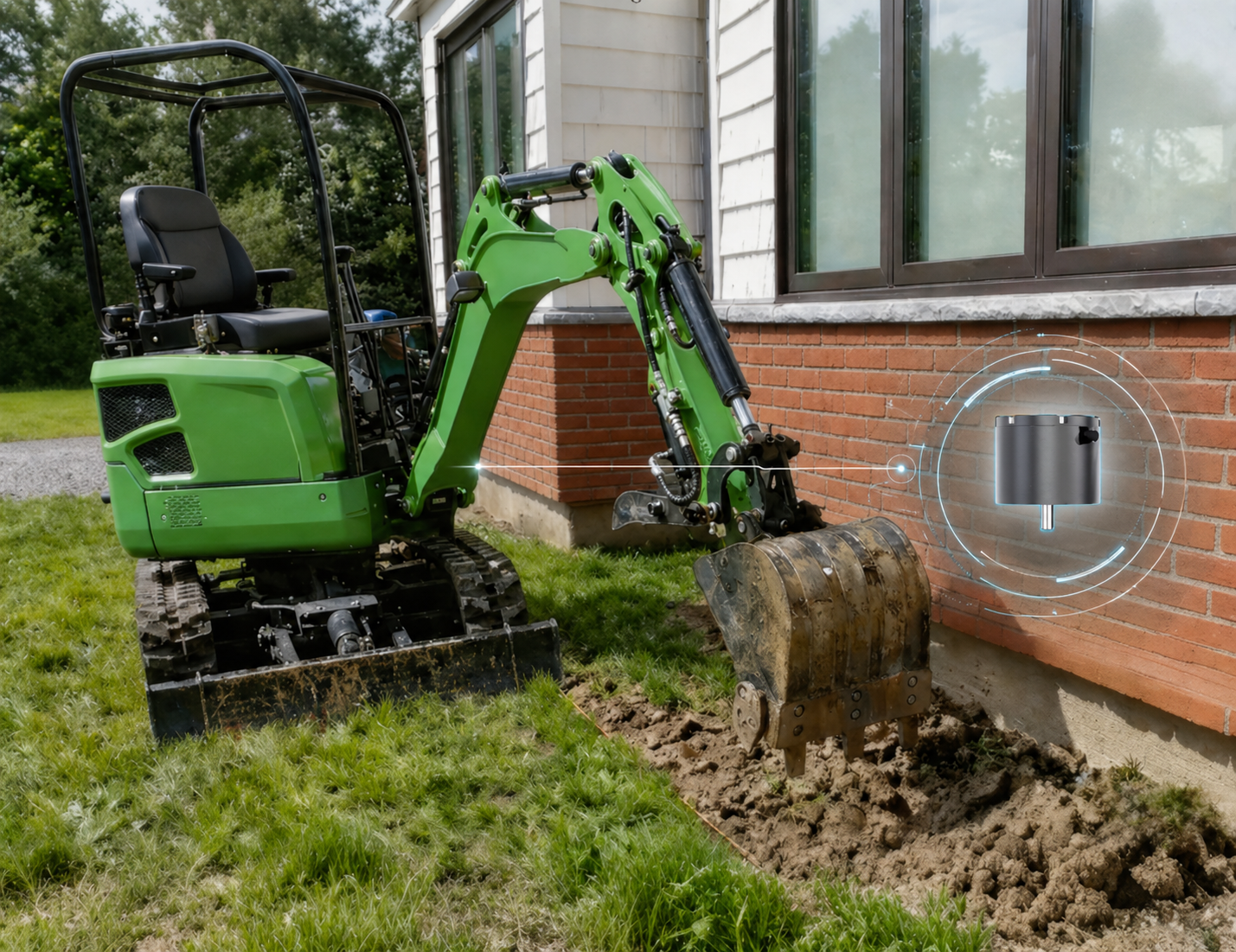

Built for close-edge excavation such as roadside ditches and wall-side work, Swing / Offset Arm Kit enables the FJD Trion EC100 to excavate accurately in tight spaces.
