FJD Trion V1 Base Station

Specs
Brochure
Free Quote

Make Navigation More Accurate

FJD Trion V1 Base Station is a lightweight GNSS receiver that supports all constellations and frequencies. With strong anti-interference capabilities, it provides fast and accurate positioning even in harsh environments. Our FJD Trion V1 Base Station Bracket kit, which comes with the station, offers extra stability and accuracy for agricultural operations.

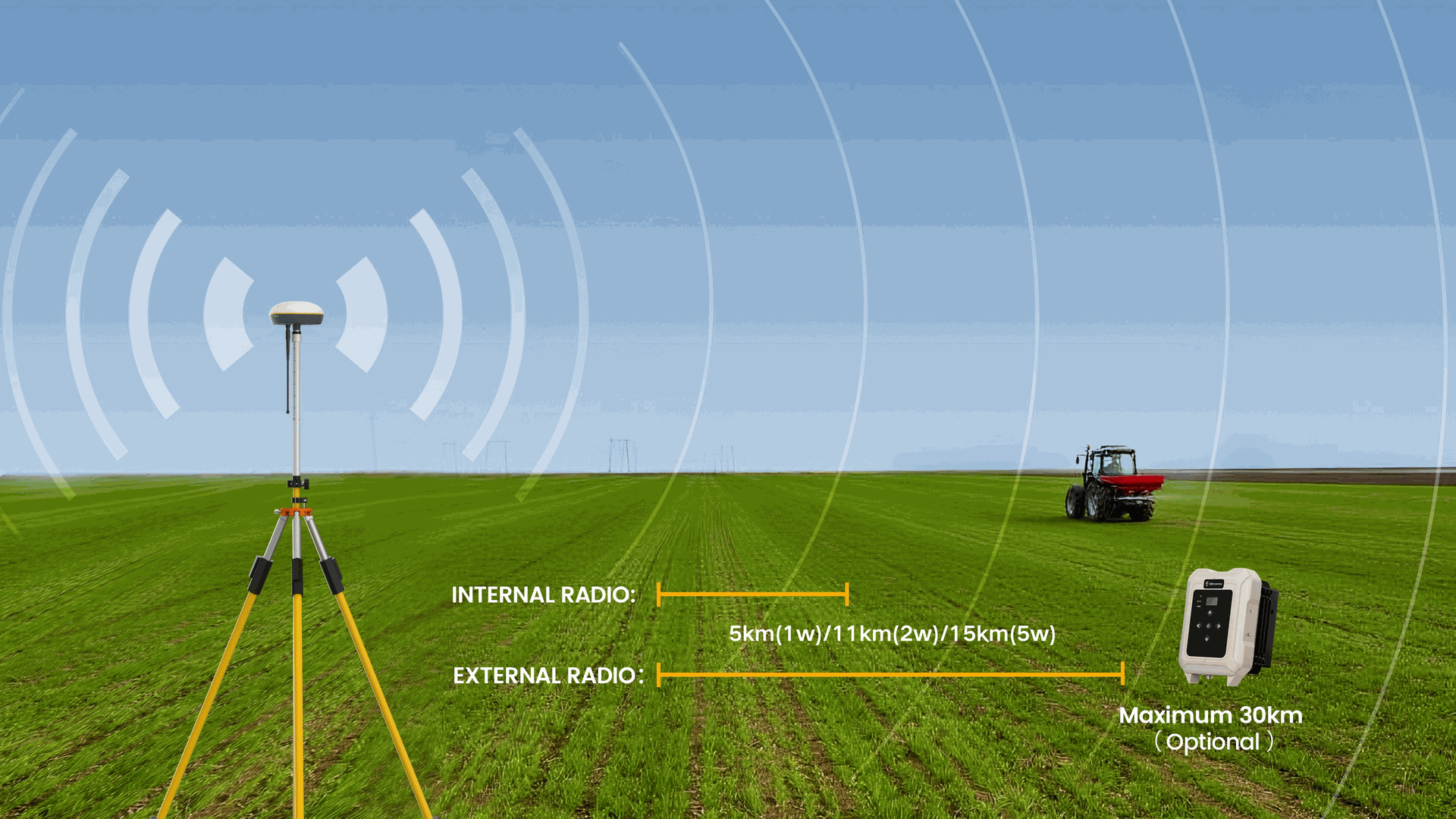

Wide Work Range

The product supports TRIMTALK, TRIMARK III, TT450S, TRANSEOT, and Satel 3AS 4FSK. Under normal conditions, the working range of the product is 5km, but it can vary from 3km to 8km, depending on interference in the working environment. With an FJD external radio, the working range can reach up to 30km in optimal conditions.

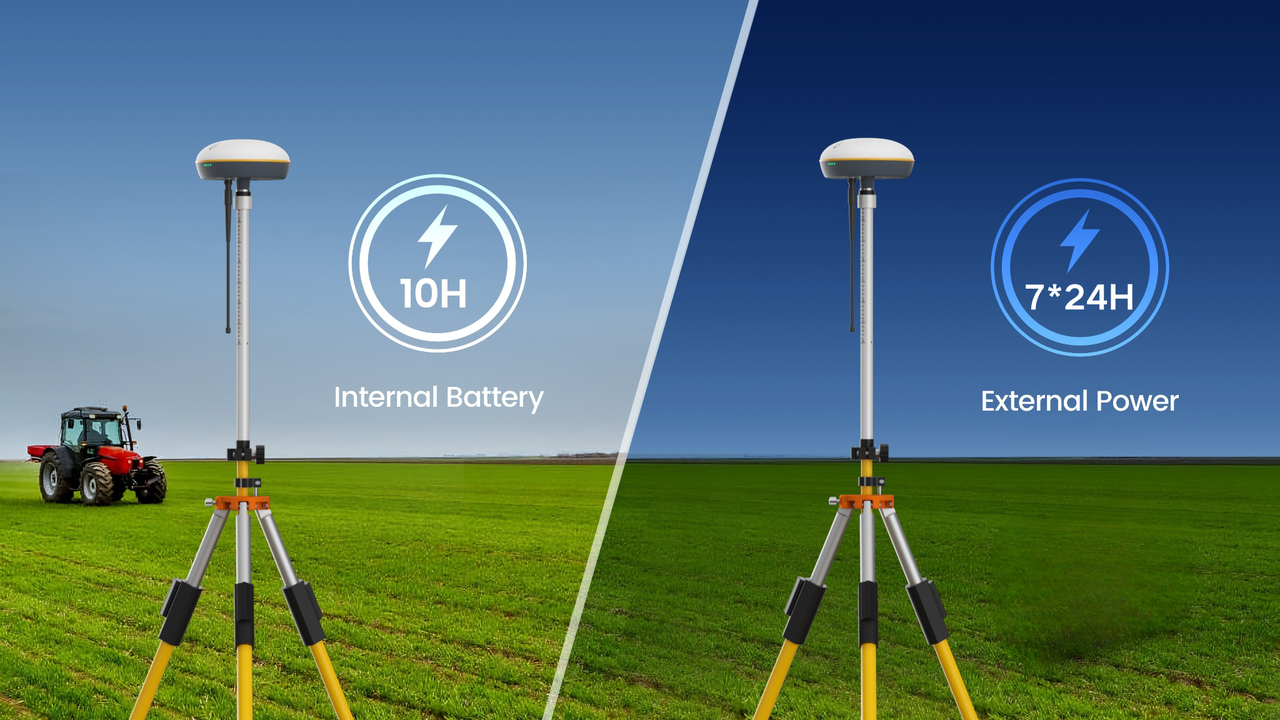

Long Battery Life

Powered by a high-capacity battery, this device offers up to 10 hours of battery life with 1W transit power, when used in base station mode.

For extended use, you can pair it with an external energy storage device or power it continuously through utility power.

Guaranteed Waterproof

The V1 Base Station has passed the IP 67 rating and the intensive test of 1.5 m drop resistance, which will fit the measurement work of more and more users.

Find Your Applicable Accessories

P30 Cylindrical Battery

An all-in-one pole-mounted power source. It keeps your V1 receiver running longer and makes setting up in the field much faster and easier.

FJ-HPR 400A

A high-power, long-range external radio transceiver designed for reliable GNSS data transmission in large-scale surveying and mapping projects.

Helps You Get It Right, Anywhere

Agricultural Plowing

Pesticide Spraying Operation

Level Ground Operation

Agricultural Harvest

Agricultural Sowing

Agricultural Harvest

FJD Trion V1 Base Station Specifications

GNSS Signal

Channels
  1408 Channels
GPS
 L1C/A, L1C, L2C, L2P(Y), L5
GLONASS

G1, G2, G3

Galileo
 E1, E5a, E5b, E6
QZSS
  L1C/A, L1C, L2C, L5, L6
NavIC
  L5
 SBAS
 L1C/A,
HAS-PPP
 E6

Receiver

Size & Weight
  162*86 mm; 1070g
IP rating & Memory
  IP67; 32GB

Battery

Battery capacity
  6500 mAh
Battery life
Base 10 h*

*Suitable for 1W transmit power.

Ambient Environment

Operating temperature
  - 30 ℃ ~ + 60 ℃
Storage temperature
 - 40 ℃ ~ + 70 ℃
Humidity
100%, condensing

Indicator

Type
   Power,data,satellite,etc.

Power Supply

Voltage
  USB PD FAST CHARGING 30W
Aviation plug support (9-32) V DC

I/O Ports

Type-C
  Support 12 V DC fast charge
UHF Antenna Port
   Support UHF antenna connection

Positioning

RTK accuracy
  RMS Horizontal: ±(8 mm+1 ppm)
RMS Vertical: ±(15 mm+1 ppm)
Single positioning (RMS)
 Horizontal ± 1.5 m, vertical ± 2.5 m
Update Rate
 Raw observation data: 1, 2, 5 Hz
                                                                                      Real-time positioning data: 1, 2, 5 Hz
Time to first fix
 Cold start: <20s
Hot start: <5s
Signal re-acquisition: <1s
Timing Accuracy
 20 ns
Pseudo-range accuracy
 ≤ 10 cm
Carrier phase accuracy
 ≤ 1 mm
RTK initialization time
 < 5 s (baseline length < 10 km)
Data format
 Input &output：RTCM3.X, NMEA-0183
                                                                                                                              Input：CMR, RTCM2.X, RTCM3.X
Initialization reliability
 >  99.9%

Wi-Fi

Protocol
  IEEE 802.11b/g/n protocol standard

Internal Radio

Power consumption

 1W/2W/5W(2W/5W Optional)

Modulation type

 GMSK or 4FSK

Frequency

(410-470) MHz/(902-928)MHz

Protocol

LoRa, TRIMTALK, TRIMMARK III, T450S,

TRANSEOT, Satel 3AS 4FSK
