FJD TRION P2 Vision+

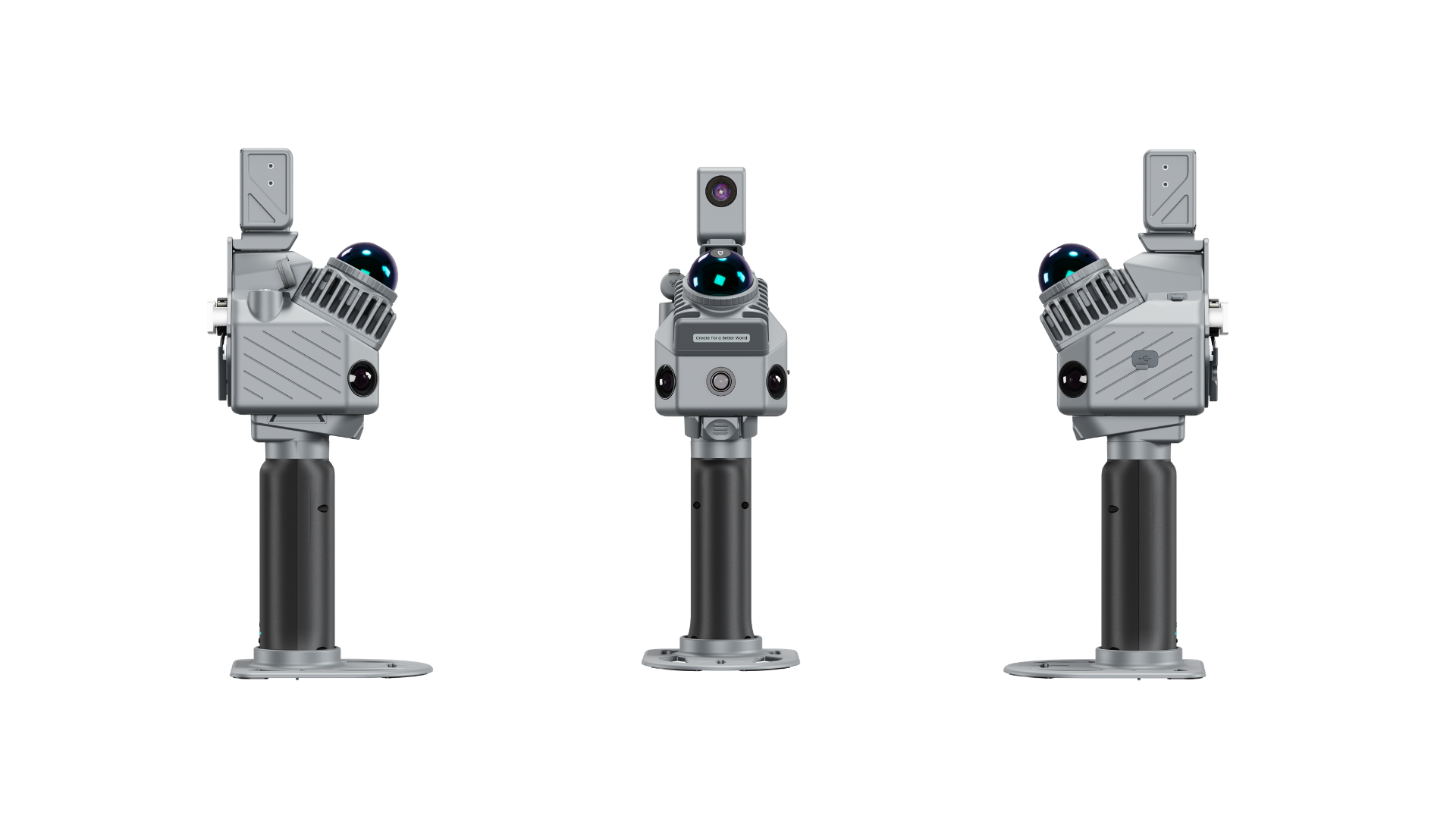

FJD Trion P2 Vision+
Specs
Support
Free Quote
Store
RGB-Thermal Linkage
One-Click Reports
 3D Thermal Data
 Up to ±2 °C
Temperature Accuracy
 -20°C to 150°C
Temperature Range
 Up to 1 cm
Relative Accuracy

Is this what your thermal inspection still looks like?​

Rows of similar images. Unclear locations. Hours of manual checking.

Traditional thermal imaging shows issues, but not where they are. So your team still spends time on:

Guessing where thermal images were taken



​
Spending hours matching images to locations



​
Revisiting sites to confirm findings

Stop guessing. Start locating.

FJD Trion P2 Vision+ links every thermal finding to its real-world position, enabling faster follow-up and clearer reporting.

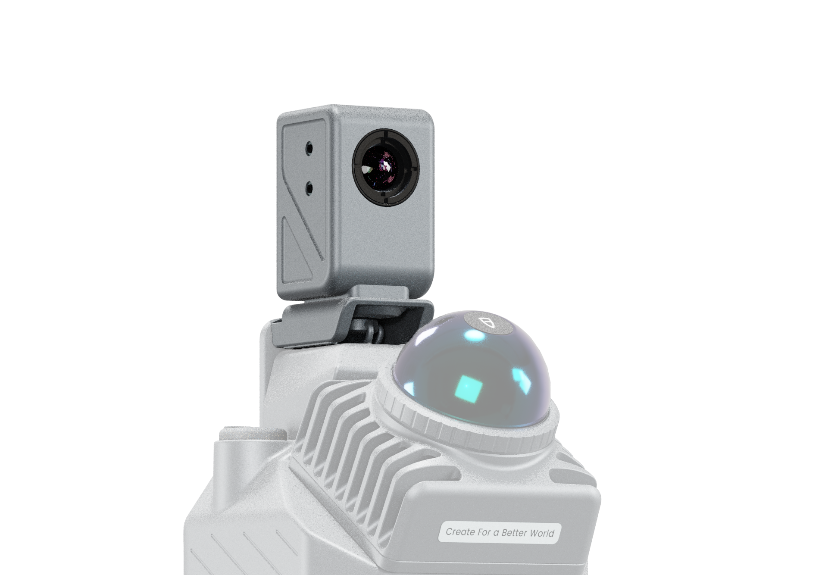

Detect hidden anomalies and capture thermal snapshots with high sensitivity.

Capture the full site and anchor every thermal finding to its real-world location.

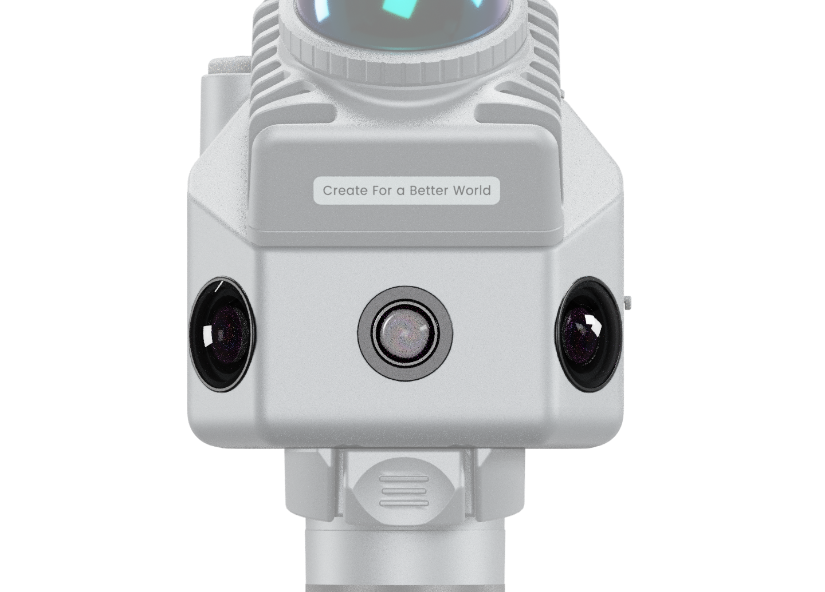

Record visible images and realistic site views for easier review and clearer reference.

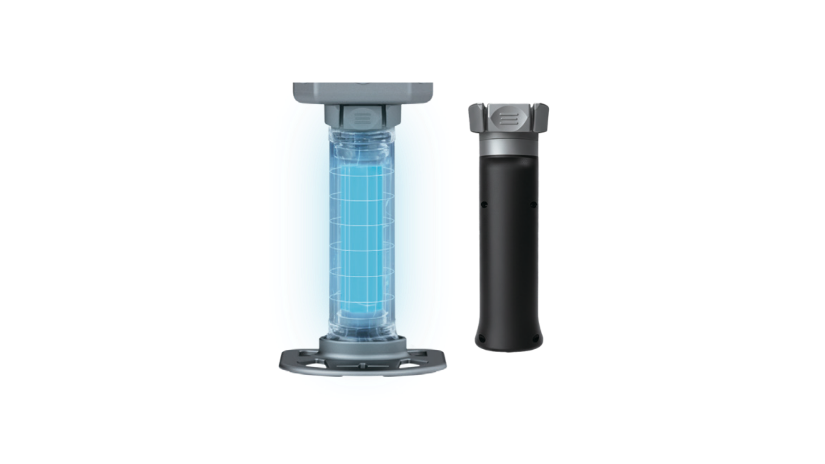

Keep inspection tasks uninterrupted with a dual-battery design and up to 4 hours of runtime.

From hidden risks to clear 3D locations

By the time damage becomes visible, repair costs have already started to rise. Infrared detection uncovers hidden risks earlier, and 3D spatial context makes every issue easier to locate, document, and act on.

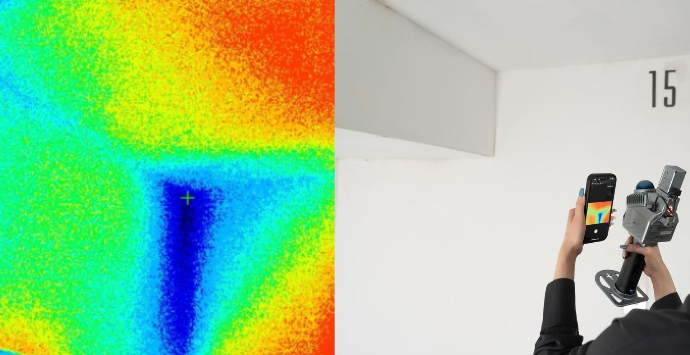

Water Leakage
Moisture can hide behind surfaces that appear dry, leading to wall damage and mold growth. FJD Trion P2 Vision+ can spot leaks early and place each issue on a 3D map so teams can find the problem quickly and accurately without lengthy site notes.

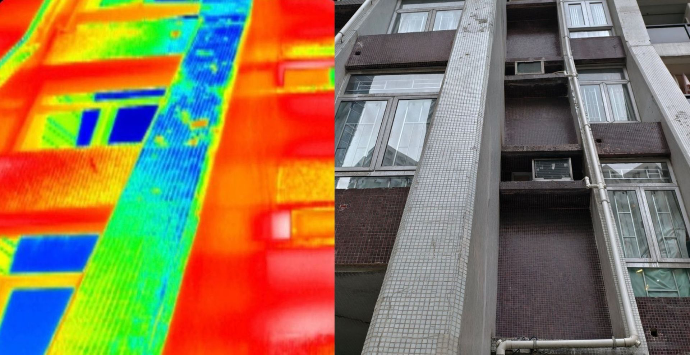

Facade Delamination
A facade may look stable from the outside, but hidden separation can still be developing beneath the surface. FJD Trion P2 Vision+ uncovers these concealed defects and pinpoints their precise locations across the facade for a faster, clearer analysis without repeated site visits.

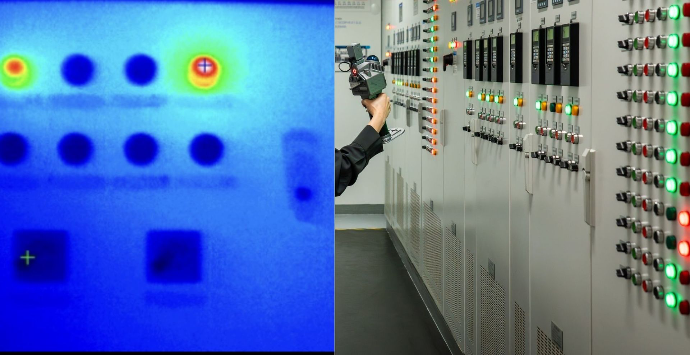

Electrical Overheating
Find electrical hotspots before they cause shutdowns. FJD Trion P2 Vision+ detects overheating early, and links each issue to the right equipment quickly, accurately, and without manual labeling.

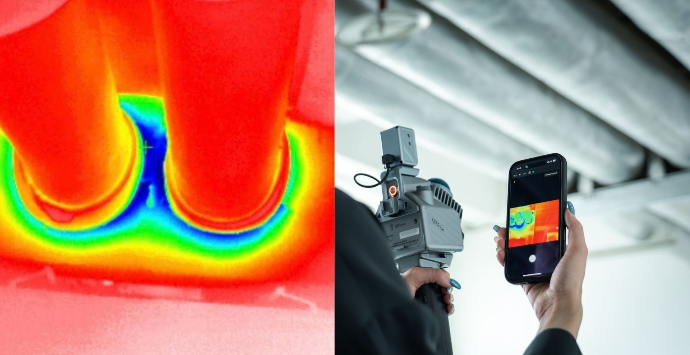

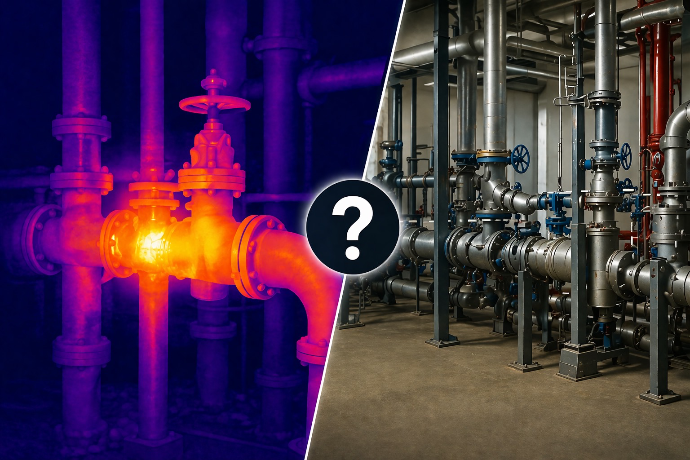

Pipe Leakage
What looks normal on the outside may be costing you beneath the surface. Hidden leaks under intact insulation can waste energy and compromise system performance. FJD Trion P2 Vision+ uncovers the problem early, mapping each leak precisely, even in complex piping networks.

One walk is all it takes.

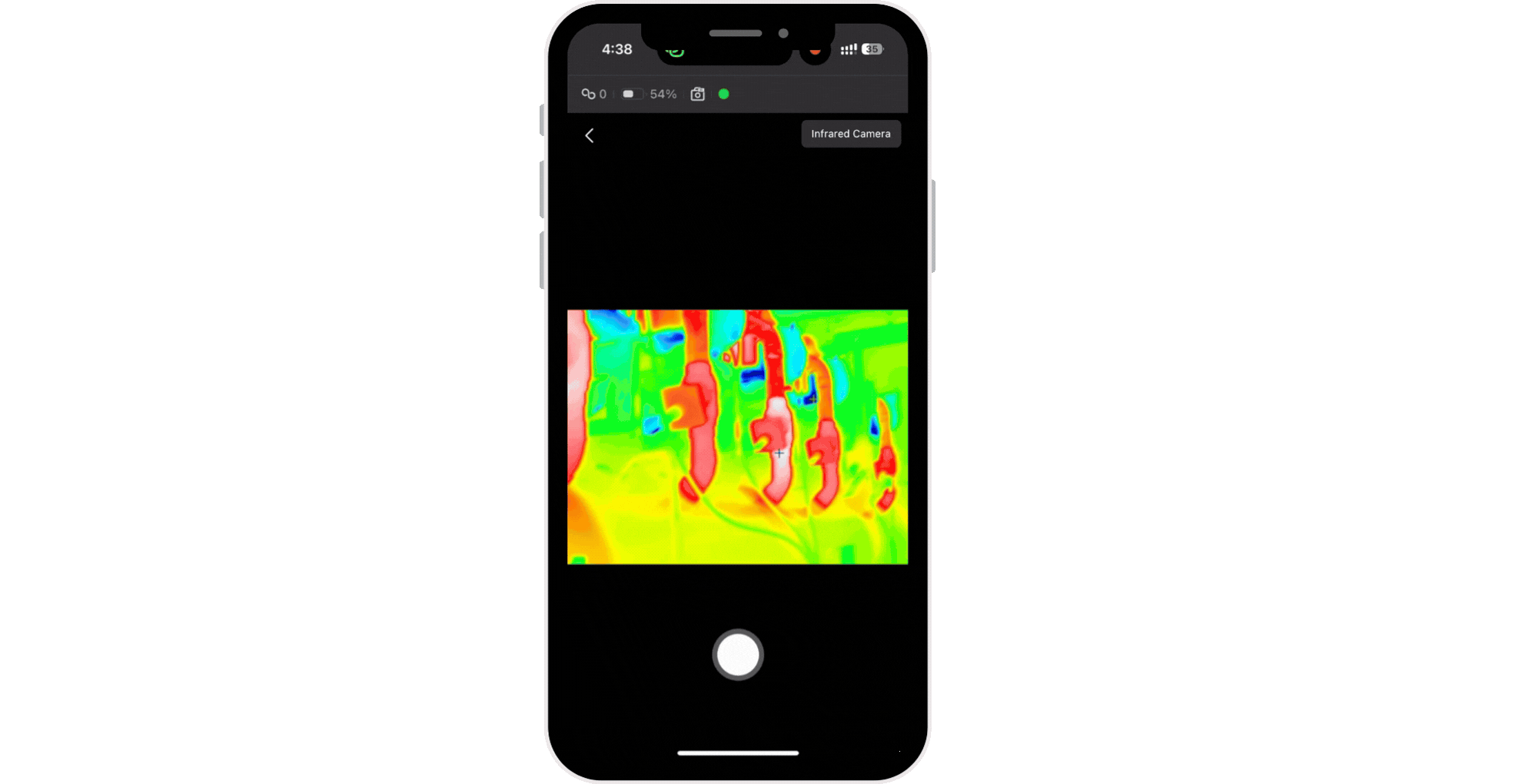

Detect and document in one walk
See it, capture it, and label it right on site. Document anomalies the moment they are found, avoiding the extra time, confusion, and rework of relocating the issue later.

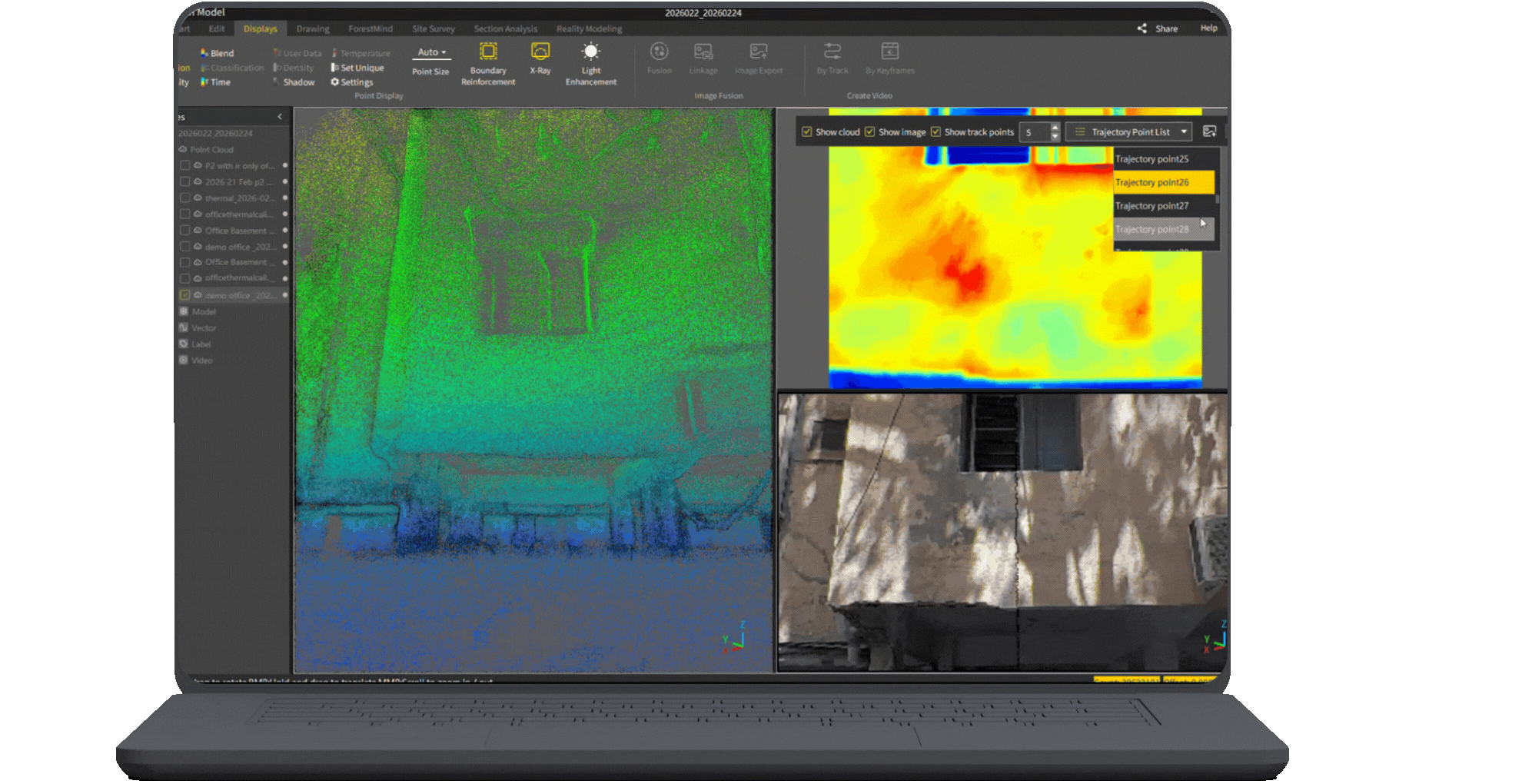

Linked views for clearer reviews
Thermal images alone can be hard to interpret. FJD Trion Model links thermal and 3D views in one workflow, helping teams review findings with clearer spatial context and identify the right location faster.

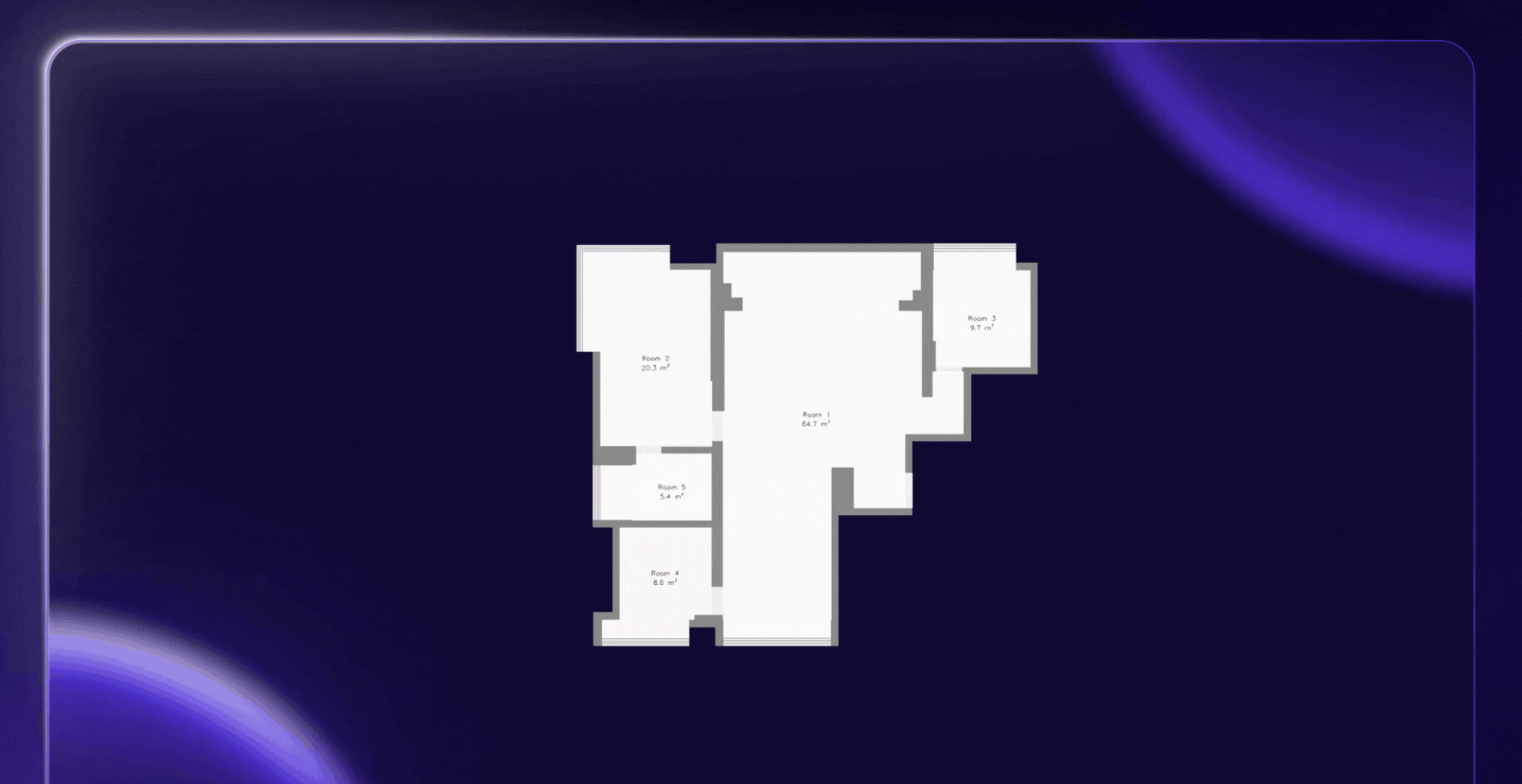

One click report, ready for action
Generate reports faster with floor plans created in one click and anomalies marked in place, turning inspection results into clear, shareable deliverables with less manual sorting, editing, and explanation.

Choose the right model for your needs

Choose P2 Vision+ for dependable everyday inspections. Upgrade to P2 Vision+ MAX for finer detail and wider coverage in every scan, so you can inspect more area with fewer passes and less walking.

  • P2 Vision+
  • P2 Vision+ MAX
Whether capturing wide-area views or close-up details, P2 Vision+ gives you the right scanning power for every job.
For teams performing detail-critical inspection, P2 Vision+ MAX brings the next level of clarity and coverage. It extends the P2 Vision+ experience with enhanced detail capture and wider reach, helping teams complete close-observation tasks with less walking and greater confidence.
3Mow the way you like. Adapts cutting height automatically for your cutting styles.

Where it pays off

Building Inspections


Data Center Monitoring


Pipeline Inspection


Cold Chain Warehouse Inspection


Historic Preservation


Solar Panel Maintenance


Specifications

Model Comparison

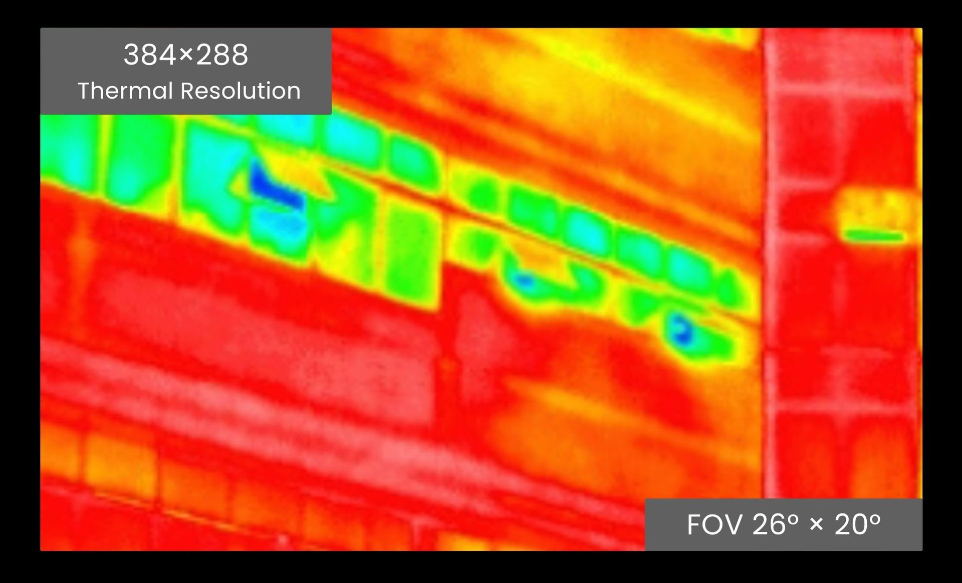

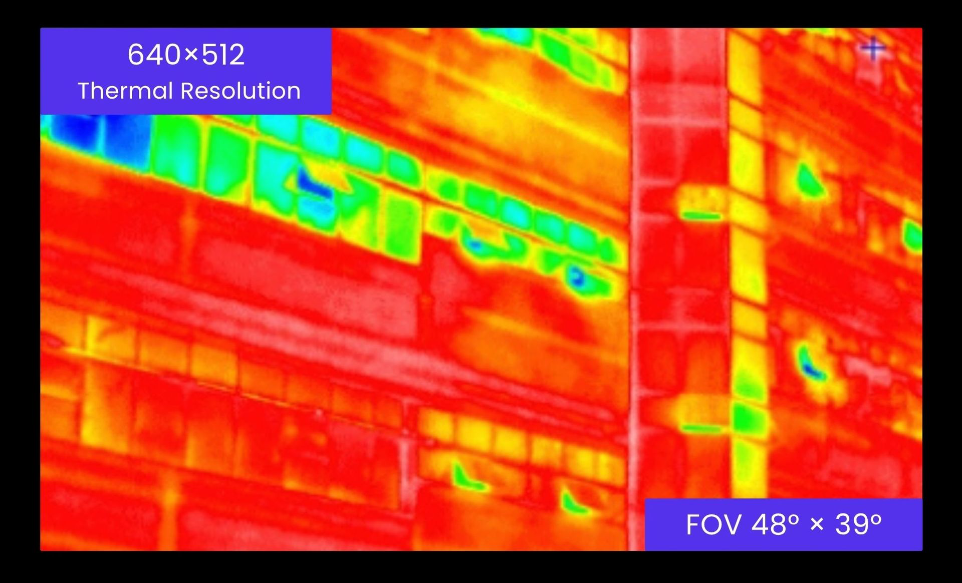

Thermal Image Resolution
  P2 Vision+: 384 × 288
P2 Vision+ MAX: 640 × 512
Thermal FOV
 P2 Vision+: 26° × 20°
P2 Vision+ MAX: 48° × 39°

Thermal Imaging Camera

 Sensor Type
  Vanadium Oxide (VOx) Microbolometer
Pixel Size
  12 µm
Spectral Range

8–14 µm

MRAD (Spatial Resolution)
 1.2
NETD
  ≤ 40 mK ( @ 25°C, F1.0)
Interface
  Type-C
Power
 ≤ 0.55 W
Temperature Measurement Distance
  Maximum 15 m
Temperature Accuracy
  ± 2 °C or ± 2% of reading

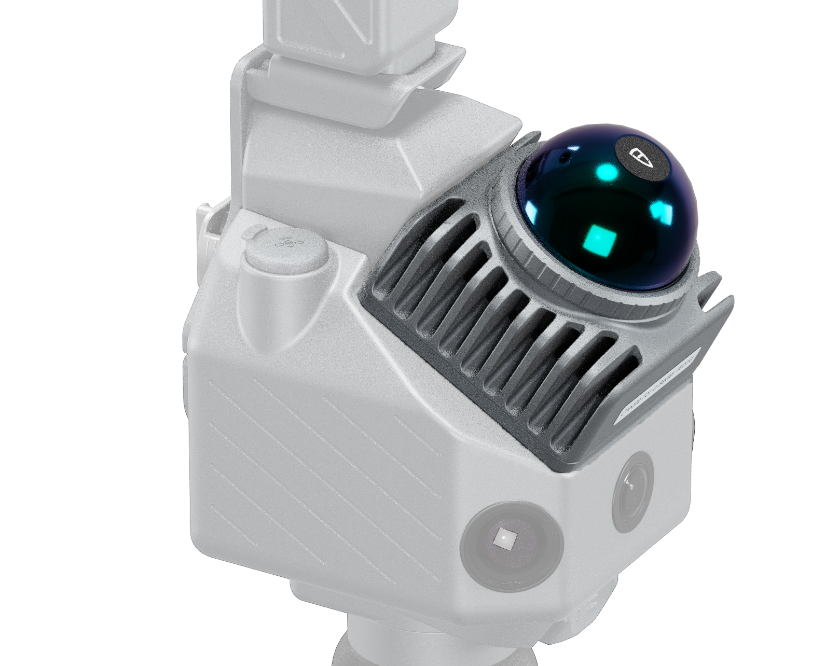

LiDAR

Speed
  200,000 pts/s
FOV
360° × 59°
Range
40 m @ 10% reflectivity
70 m @ 80% reflectivity
Safety Level
Eye  Safety Class I
Hyperdense
✓
Continuous Scanning
✓

Built-in Camera

FOV (Front Camera)
70°
FOV (Side Camera)
  280° × 149°
Resolution (Front Camera)
 2 MP
Resolution (Side Camera)
2 × 48 MP
Visual SLAM
✓
Image Export
✓
Image Format
 .jpg

Point Cloud Accuracy

Relative Accuracy*

≤ 1 cm

Absolute Accuracy

≤ 3 cm

*Lab-tested accuracy; actual results may vary

General Specifications

Dimensions
  110 × 106 × 280 mm
Weight
  700 g (excl. battery and thermal imaging camera)
980 g (incl. battery and thermal imaging camera)
Storage
  512G (1TB expandable)
Operating Temperature
  -20°C ~ 50°C
Charging Storage Temperature
  ​-40°C ~ 60°C
Charging Ingress Protection
  ​IP54
Charging Data Export
  ​Wireless Network, USB Type-C, USB Flash Disk
Charging Point Cloud Format
 .las / .ply / .pts / .e57

Electrical Specifications

Battery Life
  4H

(1 set of 2 batteries, including thermal camera)

Power Supply
  DC Handheld Battery
Power Consumption
  15 W

(excluding thermal camera)

16 W

(including thermal camera)
Charger
  67W Fast Charging
Simultaneous Dual-Battery Charging
✓
