FJD Trion N10 Specifications

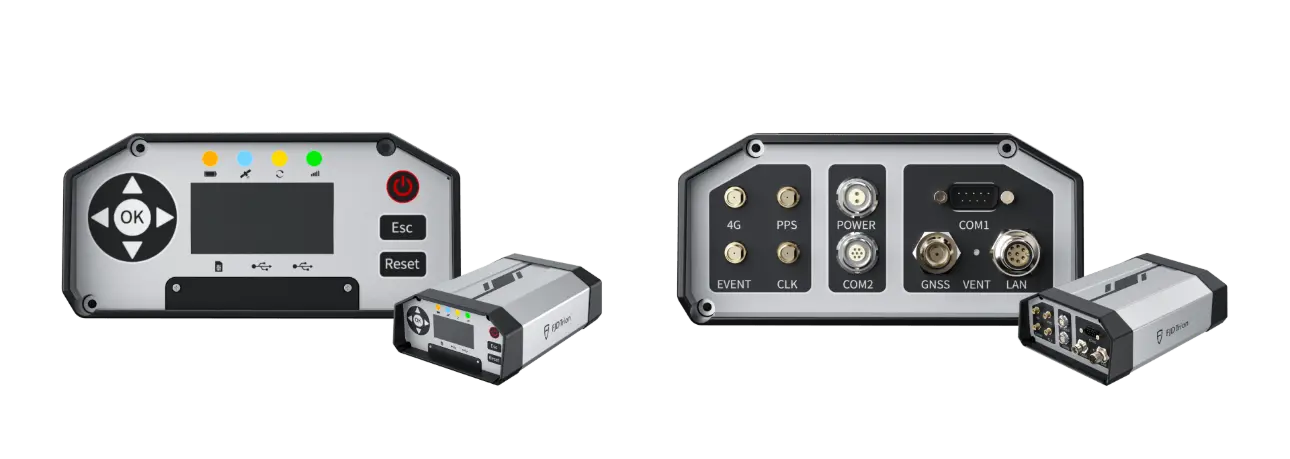

Hardware - N10 GNSS Reference Receiver

Positioning

Channels
1408
Frequencies
BDS B1I、B3I、B1C、B2a、B2b
GPS L1C/A、L2C/L2P、L5
GLO L1、L2
GAL E1、E5a、E5b
QZSS L1C/A、L2C、L5、L1S、L1C/B
Accuracy
Single point (RMS) Horizontal: 1.5 m Vertical: 2.5 m
RTK (RMS) Horizontal: 0.8 cm + 1 ppm Vertical: 1.5 cm + 1 ppm
Static differential (RMS) Horizontal: 2.5 mm + 1 ppm Vertical: 5.0 mm + 1 ppm
Update rate
Up to 5 Hz
Protocols
NMEA-0183, RTCM 2.x/3.x
GNSS antenna
Survey GNSS antenna or choke ring antenna

4G network

 4G module
Universal
 Coverage
Global (except the Antarctic and Arctic regions)
SIM card slot
Micro SIM

Wi-Fi network

Wi-Fi hotspot

 For configuring the receiver

Wi-Fi hotspot properties
Name: FJN10SN
Initial password: 123456789
Initial IP address: 192.168.200.1
Wi-Fi client
For receiver networking (connect to a 2.4 GHz Wi-Fi network using DHCP)
Ethernet transceiver
Transmission speed: 10/100 Mbps Initial IP address: 192.168.1.6

I/O

USB port

Compliant with USBIF USB2.0 standards. Max. transmission speed: 480 Mb/s

Connector Type
Type-C
USB Usage
For connecting to an external storage or updating firmware
LEMO connector
2-pin, applicable power supply: DC 9 V–36 V, recommended power supply: DC 12 V
RJ45 Aviation connector
Ethernet port
COM1 RS232 connector
DB9 connector
COM2 RS232 connector
7-pin LEMO
GNSS antenna
TNC connector
4G antenna
SMA connector
PPS output
SMA connector
External event input
SMA connector
External frequency standard input
SMA connector, reserved

Power supply

Input voltage

DC 9 V–36 V

AC 90 V–260 V

Over-voltage protection
Threshold: DC 38 V
Protection against reverse connection
Supported
Powering method
Lithium battery of 22,000 mAh (under standard conditions)
External DC power supply via LEMO connector
Battery life
>24 h
Restart
Remote restart supported

Physical and environmental

Power consumption

5 W (standard)

Dimensions
L×W×H: 220.7×152.1×81.7 mm
Weight
2.08 kg
IP rating
IP67
Operating temperature
-40°C to 65°C
Storage temperature
-40°C to 80°C

Hardware - CGX611A 3D Choke Ring Antenna

Antenna

Frequencies

BDS B1I、B3I、B1C、B2a、B2b

GPS L1C/A、L2C/L2P、L5

GLO L1、L2

GAL E1、E5a、E5b

QZSS L1C/A、L2C、L5、L1S、L1C/B

Impedance
50 Ω
Polarization
Right-handed circular polarization
Antenna axial ratio
≤3 dB
Horizontal coverage
360°
Output VSWR
≤2.0
Peak gain
6.5 dBi
Phase center error
±1 mm

Low noise amplifier

Gain

50±2 dB

Noise figure
≤2 dB
Output VSWR
≤2.0
In-band flatness
±2 dB
Operating voltage
DC 3.3 V–12 V
Operating current
≤60 mA
Differential transmission delay
≤5 ns

Structure

Size

Φ185*148 mm

Weight
≤1.8 kg
Connector
TNC female
Installation
5/8"×11 threaded

Environment

Operating temperature

-40℃ to 85℃

Storage temperature
-55℃ to 85℃
Humidity
95% non-condensing

Software - FLBS Platform

Coverage

Within network

Full coverage

Outside network
Up to 30 km
Reference station spacing
30~80 km

Positioning accuracy (RMS)

Network RTK

Horizontal: ≤ 2 cm Vertical: ≤ 5 cm

Compatibility

Satellite signals

BDS B1I、B3I、B1C、B2a、B2b

GPS L1C/A、L2C/L2P、L5

GLO L1、L2GAL E1、E5a、E5b

QZSS L1C/A、L2C、L5、L1S、L1C/B

Correction data formats
RTCM 2.3, RTCM 3.0, RTCM 3.2 MSM4, RTCM 3.2 MSM5, CMR, CMR+
Broadcast rate
1 s
Reference station
Supports all GNSS reference station receivers compliant with NTRIP 1.0 protocol
Rover
Supports all GNSS rover receivers compliant with NTRIP 1.0 protocol
Data storage format
RTCM 2.x/3.x, RINEX 3.04

Service modes

Operation modes

Physical reference station

Virtual reference station (Gird VRS)

Station types
Nearest station
Assigned station

Stability

Availability

99.9% (365 days/year)

24/7 continuous operation

Email alerts
Reference station offline
NTRIP account status changes
Ionospheric activity
Phone alerts
Service operation anomalies

Capacity

End Devices

Based on a distributed cloud architecture, supporting hundreds of thousands of concurrent device connections.

Internationalization

Languages supported

Simplified Chinese, English, French, Spanish, German, Hungarian, Turkish
